Description

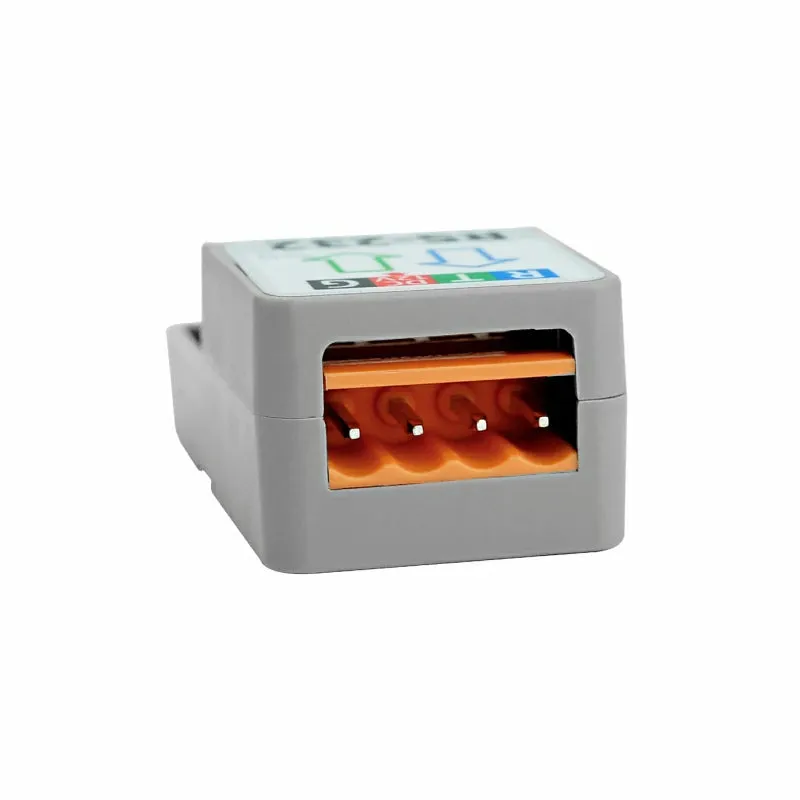

Atomic RS232 Base is a  TTL-RS232 level converter specifically designed for Atom Series controllers.  With RS-232 being the industry-standard for serial communication between computers and peripheral devices, this converter ensures seamless and reliable data transmission by precisely defining electrical characteristics and data protocols.

The Atomic RS232 Base module is built with the highly efficient MAX232 chip, enabling effortless bidirectional conversion between TTL and RS232 voltage levels. This means you can easily connect your Atom Series controller to RS232-compatible devices, expanding its compatibility and functionality.

But that's not all. We've gone the extra mile by incorporating an internal DC-DC buck voltage regulator chip within the module. This added feature allows you to power your ATOM device using an external 12V voltage level, providing maximum convenience and flexibility.

With the Atomic RS232 Base, you can trust in its outstanding performance and reliable functionality. Seamlessly connect your Atom Series controller to a wide range of RS232 devices, ensuring smooth data transfer and effortless communication.

Features

• Compatible ATOM Matrix/ATOM Lite/ATOMS3 Lite/ATOMS3
• Built-in DC/DC
• Full-duplex communication

Includes

• 1 × Atomic RS232 Base
• 1 × VH3.96-4P

Applications

• RS232 Communication
• Industrial control node

Specification
